ClearAudio Reference Jubilee

Name: ClearAudio Reference Jubilee
Brand: ClearAudio
Price: 30000.00 USD
Availability: InStock

$30,000.00

Model #: Reference Jubilee

Available in Store Only

Request More Info

The Clearaudio Reference Jubilee turntable delivers unparalleled performance with synchronized rotational speed, minimal resonance, and astonishing torque. Featuring advanced technologies like optical speed control, ceramic magnetic bearings, and a quiet 24v DC motor, it offers exceptional precision for audiophiles.

Product variants

Need help?

Product Details

Description

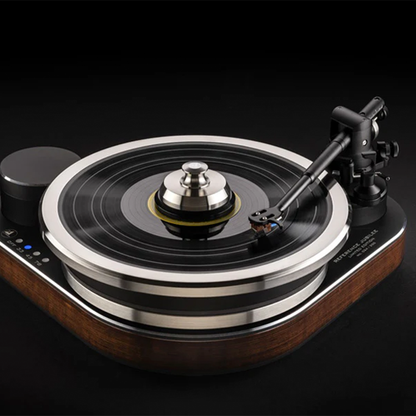

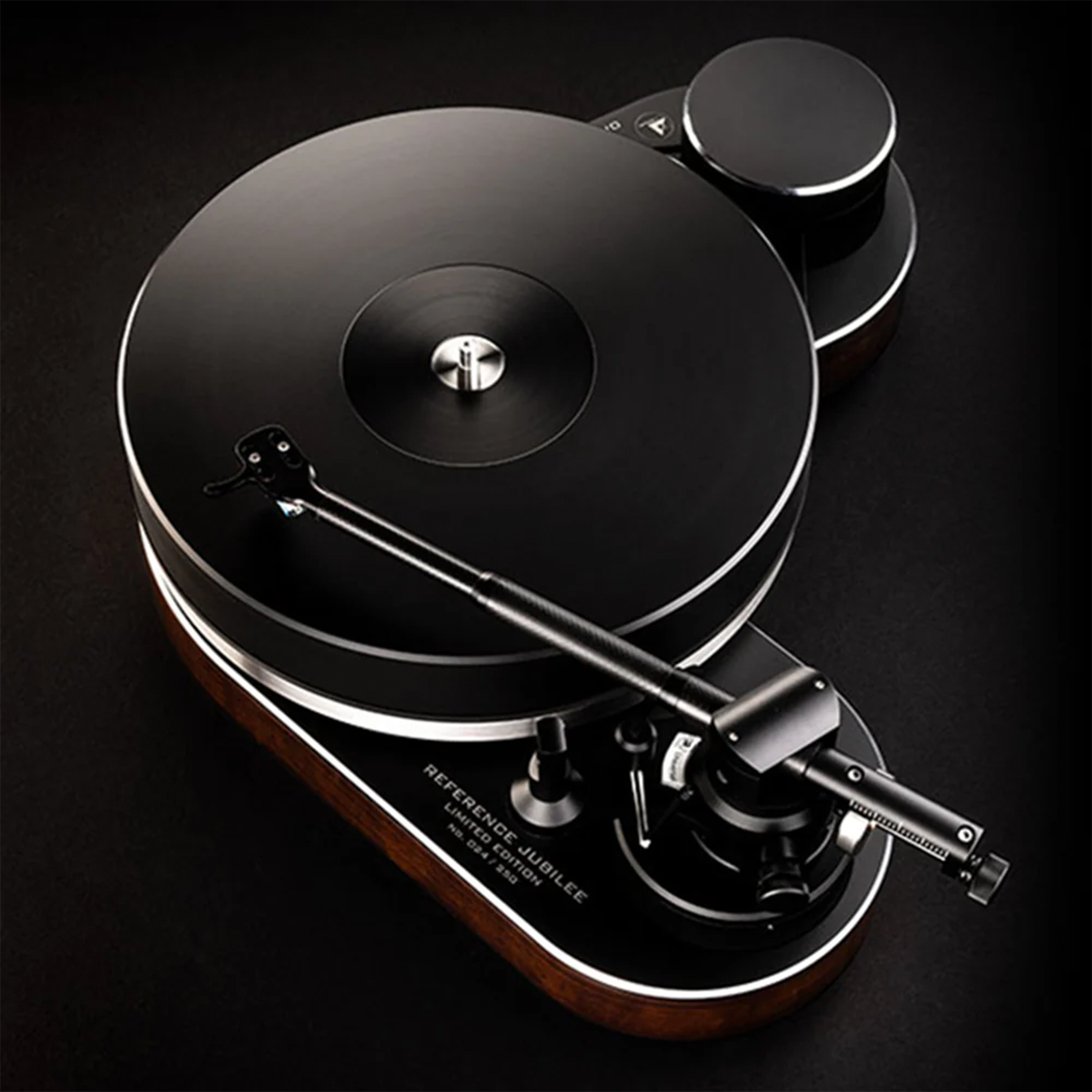

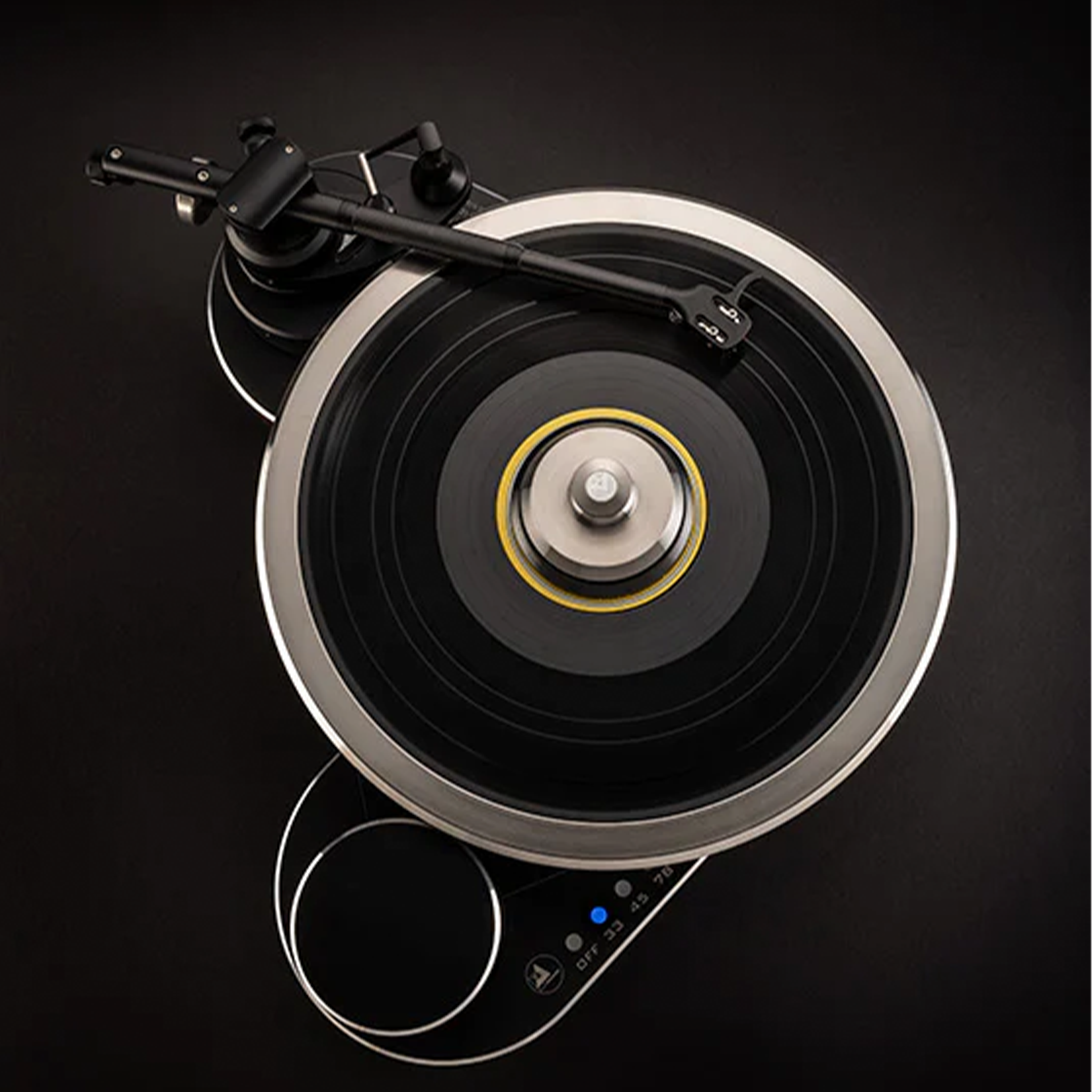

The Clearaudio Reference Jubilee turntable combines cutting-edge analog and digital technologies to deliver a superb listening experience. This complete system includes the Universal 9” tonearm, 24v linear outboard power supply, Statement record clamp, and Outer Limit peripheral ring clamp, all contributing to its exceptional clarity and performance. The 6cm-thick main platter, made from highly damped polyoxymethylene (POM), minimizes resonance and friction, while the platter rotates on Clearaudio’s patented ceramic magnetic bearing (CMB) for smooth, precise motion. The motor housing is decoupled from the chassis using rubber ‘tightropes’ to reduce noise and vibration.

What sets the Reference Jubilee apart is its integration of digital precision with analog purity. A 12-bit DAC generates motor voltage with exceptional resolution and zero fluctuations, ensuring stable speed control. Clearaudio’s optical speed control system measures the rotational speed of the 8.5kg stainless steel sub-platter every three seconds and instantly adjusts the motor’s voltage for precision, eliminating any deviation. The turntable’s new air-core 24v DC motor operates quietly, contributing to the overall low-noise performance. Every element, from the advanced motor to the fine-tuned speed control system, is engineered for ultimate performance, ensuring the clearest, most accurate playback for audiophiles.

Featured Specs

Drive Unit

High torque 24V DC motor with belt drive
Fully automatic self-calibration of the speed by a push of a button
Hybrid engine control: A high resolution 12 bit digital-to-analog converter (DAC) generates a motor reference voltage, which is fed into the purely analog motor control. Automatic compensation of friction and temperature changes on the platter bearings and belts. The speed remains in the perfect range at all times.

Bearing

Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly.
Inverted bearing in lower drive platter.

Platter

50mm / 1.97 inch main platter, made out of synthetic material with high density and excellent dimension.
15mm / 0.59 inch stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balance.
Speed Accuracy (Measured)

General Specs

Depth (in.)

13.5

Height (in.)

6.3

Width (in.)

19.49

Product Weight (lbs.)

48.5 without tonearm

FAQs

Please read our FAQs page to find out more.

What is the warranty on ClearAudio Turntables?

To benefit from the extended warranty periods, please either register your warranty with ClearAudio online or complete the warranty card enclosed with your product and return it to ClearAudio, within 14 days of purchase. Without warranty registration, only the legal warranty period of 2 years will be provided.

Do you offer service on ClearAudio Turntables?

We do! In many cases we can service a still under warranty turntables in the home, however in rare cases we might need to bring it in for more extensive maintenance.

Do you accept trade-ins toward purchase?

Absolutely. We have an aggressive trade in program aimed at getting our clients to the next level. Ask one or our experts about it or submit your potential trade in gear here.
