Product Details

Description

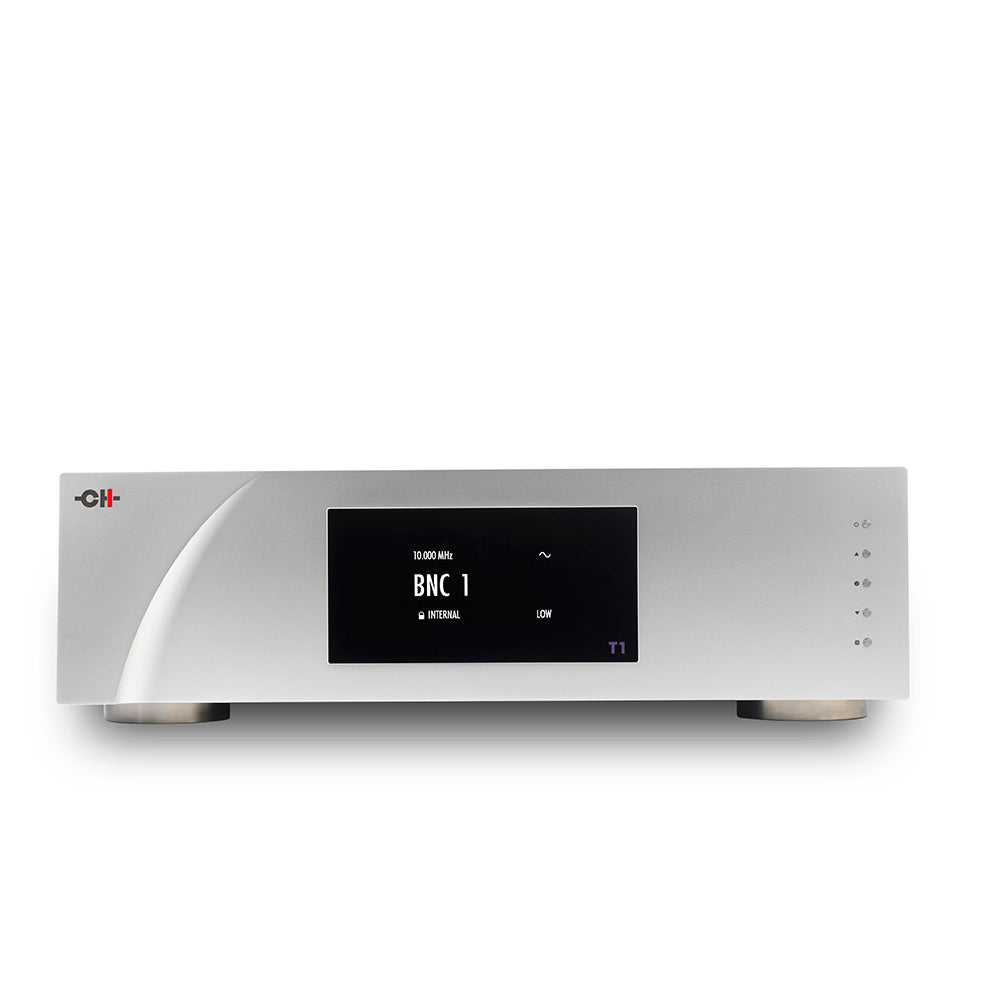

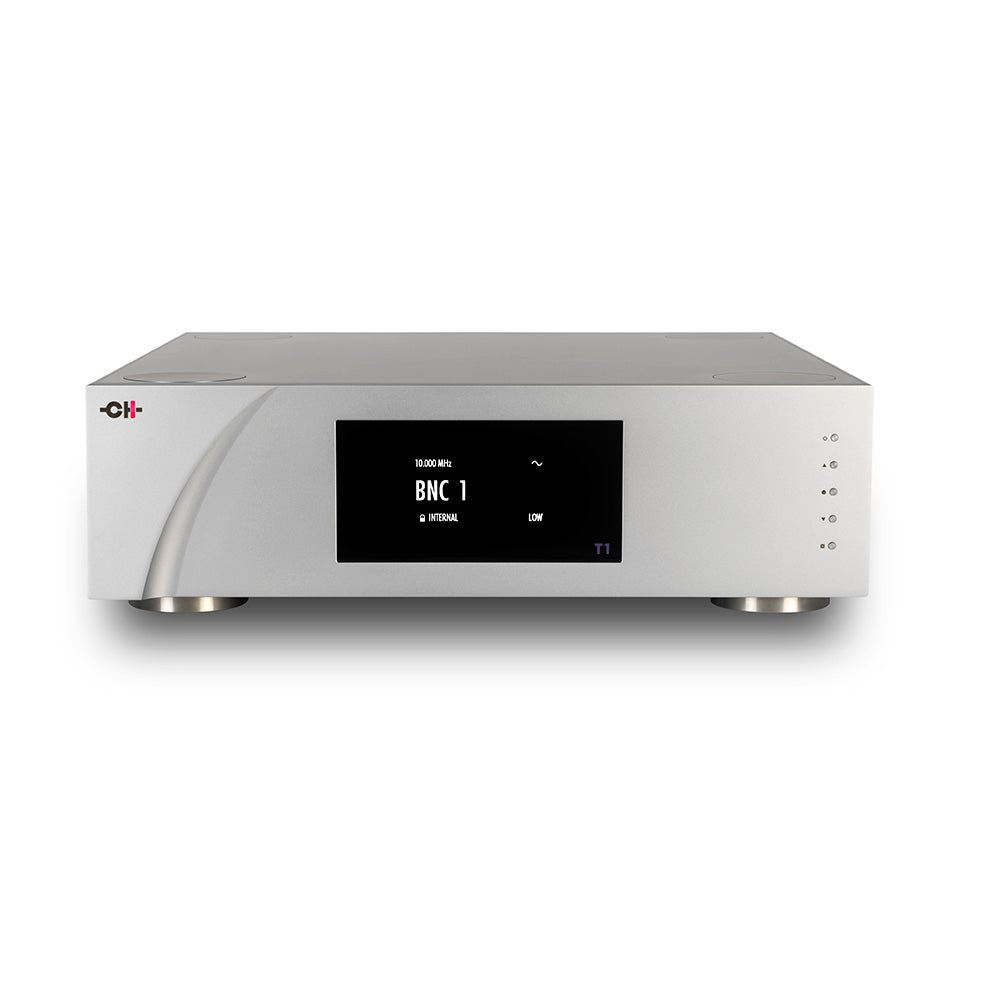

The CH Precision T1 Time Reference external clock is a groundbreaking solution for optimizing synchronization across multiple components in your audio system. Unlike traditional methods that rely on syncing two or more units to a single master clock, the T1 elevates performance by syncing your entire system to a superior, external reference point. Designed to work seamlessly with CH Precision's D1, C1, and I1 models, the T1 generates a high-frequency 10MHz signal using an oven-controlled oscillator (OCXO) that ensures low jitter, improved phase noise reduction, and a more accurate transfer of digital signals. The T1’s robust construction includes an encapsulated, mechanically isolated billet aluminum block to stabilize temperature and output, ensuring longevity and superior performance. In contrast to Rubidium-based clocks, which have a limited lifespan and involve radioactive materials, the T1 offers a long-lasting, environmentally friendly alternative. With its precision engineering, the T1 delivers unparalleled audio performance, ensuring your system operates at its absolute best for years to come.

Featured Specs
Nominal frequency
  • 10MHz, +/- 20ppb, internal mode
  • 10MHz, +/- 1ppb maximum, GPS option locked for 1 hour
Phase noise performances
  • < -105dBc/Hz @ 1Hz
  • < -125dBc/Hz @ 10Hz
  • < -145dBc/Hz @ 100Hz
  • < -155dBc/Hz @ 1kHz
  • < -165dBc/Hz @ 10kHz and above

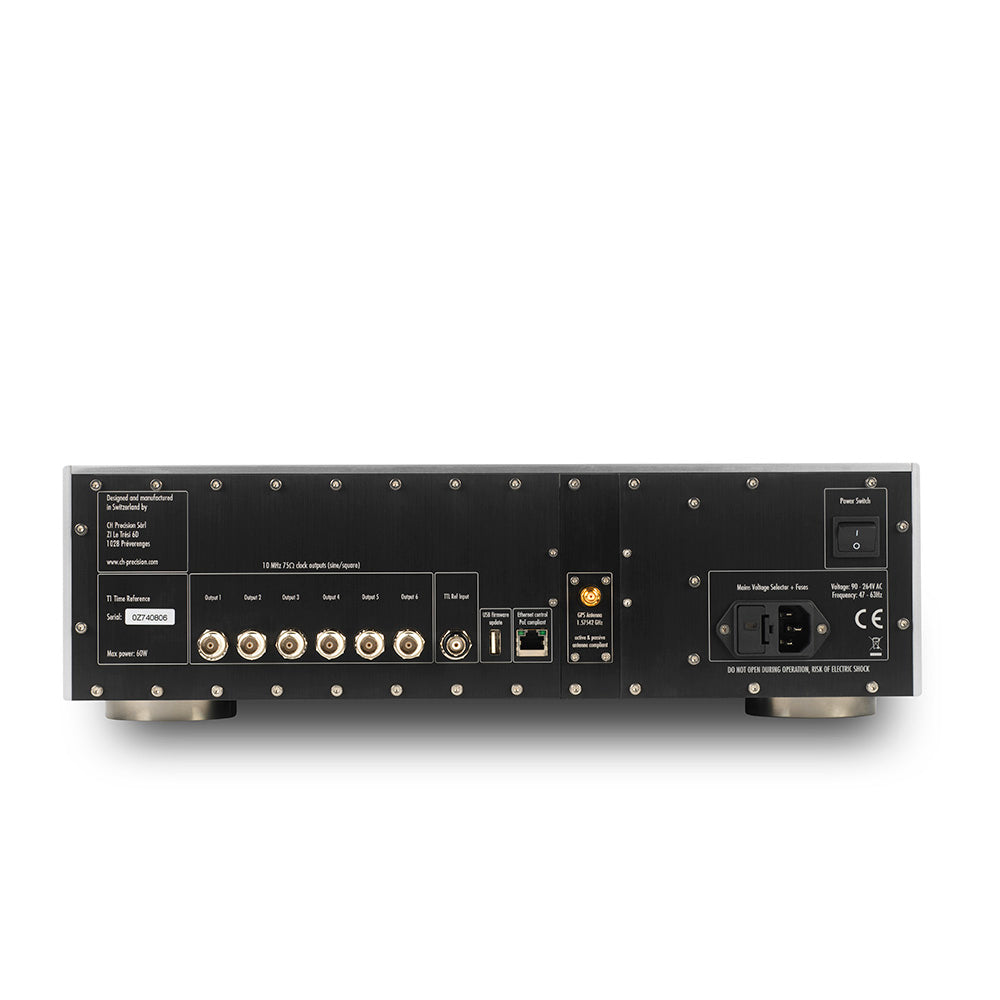

Outputs level
  • 500mV or 1V, peak to peak, loaded with 75Ω
  • Sine or Square wave
  • Six 75Ω BNC outputs
General Specs
Depth (in.) (per chassis)

17.32

Height (in.) (per chassis)

5.24

Width (in.) (per chassis)

17.32

Weight (lb.)

44.09

FAQs

Please read our FAQs page to find out more.

What is the warranty on CH Precision Products?

The US warranty for CH Precision products is three years, with one year of coverage specifically for displays and transports. This warranty ensures the highest quality and reliability of CH Precision products, giving customers peace of mind for their investment in exceptional audio equipment.

Do you offer service on CH Precision Products?

We do! In many cases we can service a still under warranty products in the home, however in rare cases we might need to bring it in for more extensive maintenance.

Do you accept trade-ins toward purchase?

Absolutely. We have an aggressive trade in program aimed at getting our clients to the next level. Ask one or our experts about it or submit your potential trade in gear here.
