Product Details

Description

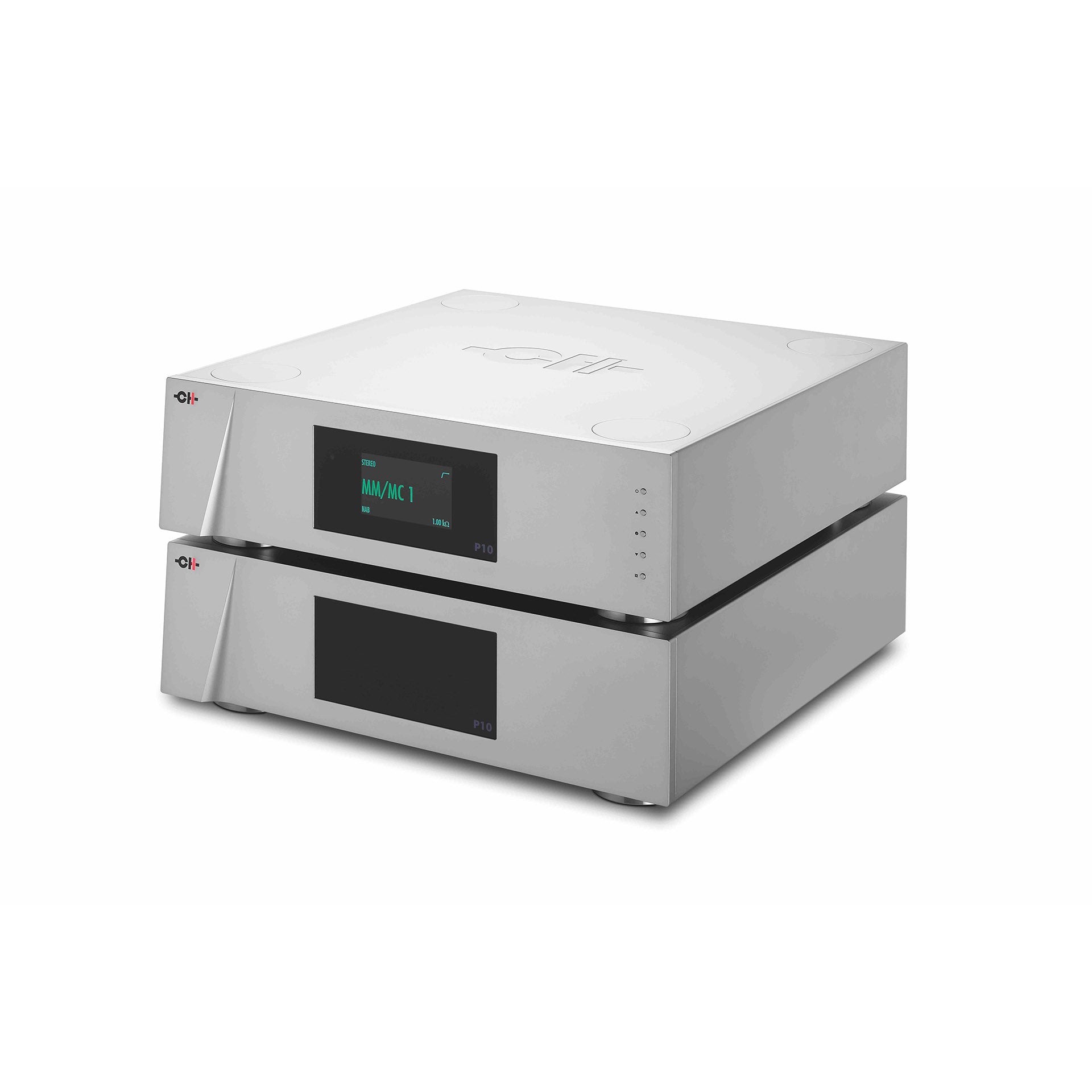

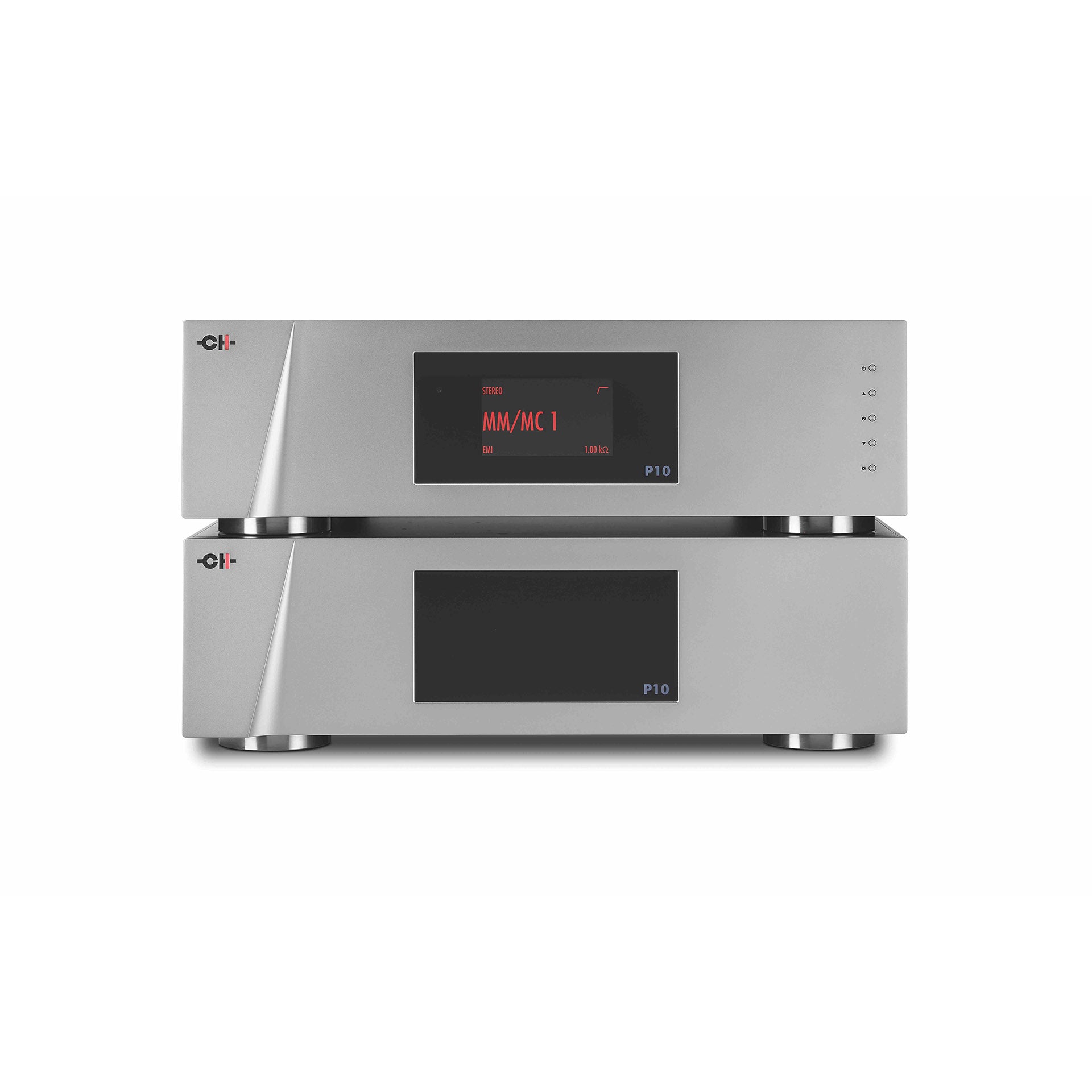

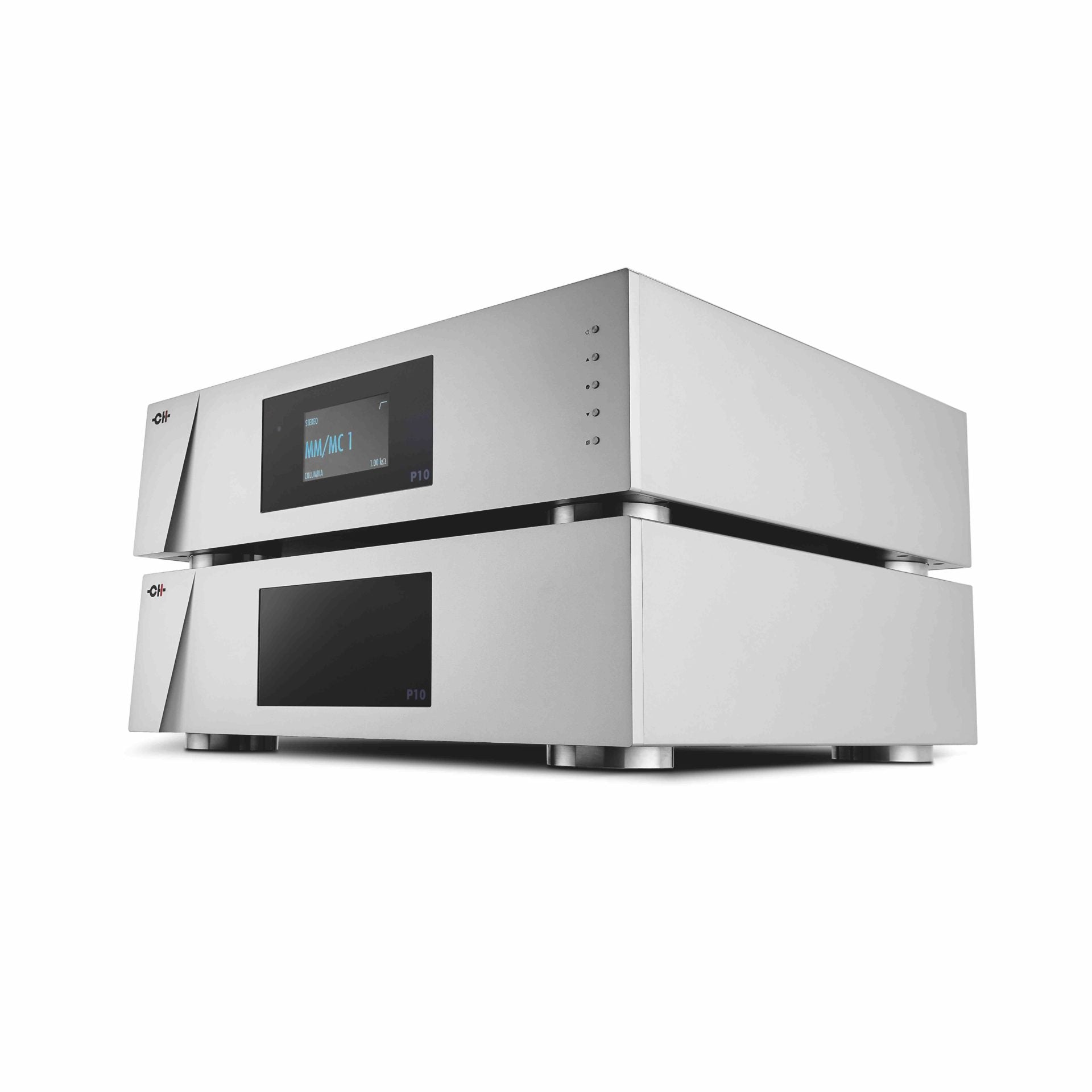

Introducing the P10 phono-stage, the newest addition to our flagship 10 Series, which redefines what is possible in analog playback. Building on the success of the P1, widely recognized as the benchmark for phono performance, the P10 brings a new level of sophistication, versatility, and musicality. Featuring a twin-chassis design with an ultra-low noise floor and a dedicated power supply, the P10 offers improved signal clarity and stability, ensuring an exceptional listening experience.

At the heart of the P10 is an all-new circuit topology, with three separate gain stages that reduce noise and distortion, while providing greater precision in musical reproduction. The phono-stage is equipped with four configurable XLR/RCA inputs, trans-impedance MC inputs, and fully discrete MC/MM inputs, allowing for unrivaled customization and flexibility. With finer gain adjustment in 3dB steps, enhanced loading options, and seven selectable EQ curves, the P10 ensures compatibility with any cartridge and system configuration.

The user interface has been upgraded for ease of use, featuring a color-changing display, IR remote control, and an intuitive cartridge setup wizard. Whether used in stereo, mono, or with a full four-box True Monaural configuration, the P10 excels at bringing out the best from your vinyl, offering unmatched tonal accuracy and transparency. With its groundbreaking performance, the P10 elevates the analog listening experience, capturing the lifelike sound of records as never before and providing an immersive connection to the original performance.

Featured Specs
Equalization
  • Playback EQ curve accuracy: +/- 0.1dB
    Standard EQ Curve: RIAA
  • Optional EQ curves: EMI, Columbia (LP), Decca (London), DGG (Teldec), NARTB (NAB), Capitol/AES and Philips
  • Ultrasonic: Neumann pole at 50kHz can be engaged with any EQ curve
  • Subsonic: Anti-rumble 2nd order high-pass filter at 7Hz can be engaged with any EQ curve
Total Harmonic Distortion + Noise (ikHz signal, output level 3V RMS, 22kHZ BW)
  • THD+N < 0.001%, MM/MC voltage input, gain < 50dB
  • THD: unmeasurable (below noise floor) for MM/MC voltage input, gain > 50dB
  • THD: unmeasurable (below noise floor) for MC current input, any gain
Input
  • 2x MC current-sensing inputs, each available on both XLR and RCA connectors
  • 2x MM/MC voltage-sensing inputs, each available on both XLR and RCA connectors
  • Unused inputs can be turned off
General Specs
Depth (in.) (per chassis)

17.32

Height (in.) (per chassis)

4.72

Width (in.) (per chassis)

17.32

Weight (lb.)

95
